How to Install a Nest Thermostat

Published by
AllThingsHVAC
Last updated:
April 14, 2018

Today, we're going to talk about how to install a Nest thermostat, since many people find themselves needing to do it. If you didn't know, these thermostats are the ones that learn what temperatures you like around the house. It learns by recording when and how you change the temperature. Once you do this for a few days, the thermostat will automatically start doing it. It can also sense when you're not home and go into energy saving mode, as well as making different rooms different temperatures depending on what you set the sensor to. While the sensors are sold separately, you can buy one for each room so they all have the right temperatures.

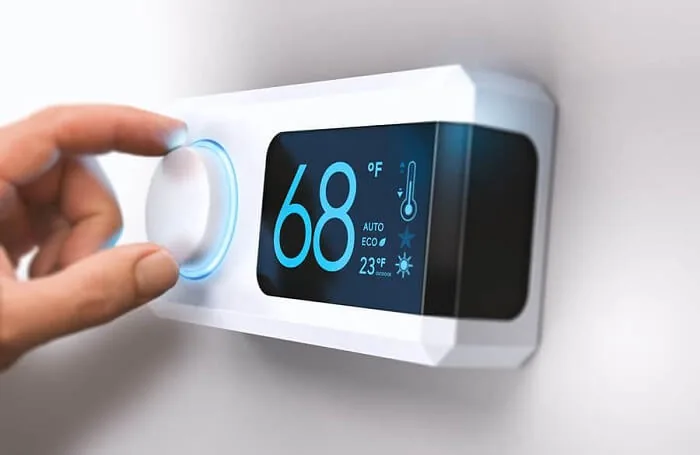

Smart Nest thermostat being set

Why You Might Need to Install a Nest Thermostat

There are a few reasons why you might be interested in getting a Nest thermostat. For starters, if your child likes their room cool but you like the rest of the house warm, this thermostat will let you achieve both. Another reason why you might be interested in this thermostat is that you want to reduce your energy bill and be more eco-friendly. The reason this thermostat can help you do this is that it can sense when you aren't home and it will turn down the temperature and go into energy saving mode. This means it will only be going full blast while you're actually there and enjoying it.

The Nest thermostat records what temperatures you set it to and it makes everything much more convenient. You don't have to take the time to get up, go to the thermostat, and put it to the temperature you want because this thermostat does it for you automatically. It will get on a schedule and put the temperature where you want it and when you want it there. If this thermostat seems like something you are interested in, then keep reading to see how to install a Nest thermostat.

Tools & Specs to Keep in Mind

Before you continue reading to see how to install a Nest thermostat, you want to make sure you have all the tools you'll need and, if you don't, you'll want to make sure you can easily get them. The things you'll need to do a complete install of the thermostat are below.

  • The thermostat itself;
  • Sensors if you want different temperatures for different rooms;
  • A small Phillips head screwdriver to remove the wires from your old thermostat.

These are the only tools you'll need and the install will take about 30 minutes. The package includes tape with letters that will help with labeling the wires.

In terms of specs for this thermostat related to others, there aren't really any that would need extra research or explanation. It's pretty straightforward and the only difference is that the technology is better than the thermostats that aren't considered smart devices.

How to Install a Nest Thermostat in 14 Steps

This is where we're going to go into detail and look at the steps on how to install a Nest thermostat. It's relatively simple and, as long as you don't skip any steps, you'll have your thermostat up and working in no time!

  1. Go to the circuit breaker and turn off the power to your thermostat so you don't short out the wires or electrocute yourself.
  2. Use the blue stickers that came in the package to label the wires. Make sure you look at the diagram to check you're labeling the right wires.
  3. Remove the wires from the old thermostat and unscrew it from the wall.
  4. Bring the wires through the Nest plate and use the little bubble level to make sure it's level. Make a mark so you know where it will go.
  5. This step is optional, but if you want to cover up the old screw holes then you'll want to install the trim plate.
  6. Use the screws and screwdriver that came in the package to install the Nest base into the wall.
  7. Put the labeled wires into the right spots on the Nest. A small tab will go down once you insert the wire correctly.
  8. Line up the small rectangle connector on the back of the Nest display with the rectangle on the base plate and attach the display.
  9. Go back to the circuit breaker and turn the power on.
  10. Connect the Nest thermostat to your Wi-Fi.
  11. Follow the setup instructions that you see on the screen.
  12. Set your temperature.
  13. Download the Nest app on your devices.
  14. Connect the Nest to your smart devices.

Caution Notes

While there aren't too many cautions to take into consideration, there are a few very important things you need to do. The first one is to make sure the power to the thermostat is not on before you begin working on it. This will help you not electrocute yourself or end up shorting out the wires in your home. The other important thing is if your old thermostat is either 120V or 240V, then don't try to install the Nest thermostat. This is also true if the thermostat has thick wires because the Nest won't work correctly.

If you found it difficult to follow the steps above, here you have a clip that shows you how to install the 3rd generation Nest thermostat:

Drawing to a Close

Now you know how to install a Nest thermostat and some of the important things to consider. You should be able to decide whether or not it's something that you would like to have. Not only is it easy to install, but it can make your life easier and your home feel more comfortable. You can also end up saving a good amount of money on your energy bill, as well as being more eco-friendly. If this sounds like something you want or you have any questions, leave a comment below! Anyone who has installed one on their own is also welcome to comment!
